UBIQVUE 2A MULTIPARAMETER SYSTEM1
Featuring The World’s First Single-use Wireless Biosensor With SpO2
Featuring The World’s First Single-use Wireless Biosensor With SpO2
Vital Sign Monitoring in
Near Real-Time

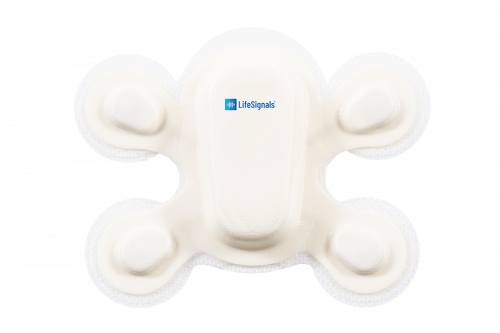

A single-use, all-in-one, chest-worn medical device that enables biodata to be continuously collected and transmitted, in near real-time2, to the cloud server, where a total of twelve monitored parameters are processed, including SpO2, 2-channel ECG, pulse rate, PPG, respiration rate, body temperature, and motion.
Healthcare professionals can access continuous vital signs, receive alert notifications, and view visual alarms, via the UbiqVue web portal.
The 2A Biosensor is central to the UbiqVue Multiparameter System, enabling streamlined patient care in hospital and out-of-hospital care settings.
System Parameters & Features
SpO23
R-R Interval3
2-channel ECG3
Heart Rate Variability3
PPG Waveform3
Event Recorder
Pulse Rate3
Gyroscope
Heart Rate3
Accelerometer
Respiration Rate3
Water Resistant
Temperature (Body & Skin)3
Completely Untethered
Posture & Motion3,4,5
One-time Use
5-day Wear
Vital Sign Monitoring in
Near Real-Time
A single-use, all-in-one, chest-worn medical device that enables biodata to be continuously collected and transmitted, in near real-time2, to the cloud server, where a total of twelve monitored parameters are processed, including SpO2, 2-channel ECG, pulse rate, PPG, respiration rate, body temperature, and motion.
Healthcare professionals can access continuous vital signs, receive alert notifications, and view visual alarms, via the UbiqVue web portal.
The 2A Biosensor is central to the UbiqVue Multiparameter System, enabling streamlined patient care in hospital and out-of-hospital care settings.
System Parameters & Features
SpO23
R-R Interval3
2-channel ECG3
Heart Rate Variability3
PPG Waveform3
Event Recorder
Pulse Rate3
Gyroscope
Heart Rate3
Accelerometer
Respiration Rate3
Water Resistant
Temperature (Body & Skin)3
Completely Untethered
Posture & Motion3,4,5
One-time Use
5-day Wear
•
•
•
Specifications
Biosensor Specs
- 116 mm x 91 mm x 17 mm
- 35g weight
- IP24 ingress protection
- Memory cache 12 hours
Electrocardiogram3
- 2 channels
- 244.14 and 976.56 samples per second
- 16 bit resolution
- Patient activated event recorder
BATTERY
- Lithium-Manganese dioxide (Li-MnO2)
- Up to 5 days battery life
- Defibrillation-proof
SpO23
- 100% to 70%
- 1% resolution
- Spectral sensor method
ADditional features3
- Heart rate 30-250 bpm
- R-R interval 240 ms – 2000 ms
- Heart rate variability
- Accelerometer: posture and motion status4,5
- Body Temperature 32°C to 43 °C
- PPG Waveform
- Skin temperature 15°C to 43°C
- Pulse rate: 30 – 250 bpm
- Respiration rate 6-60 bpm
Wireless
WLAN
- IEEE 802.11b
- 2.400-2.4835 GHz
- WPA2 – PSK / CCMP security
- 5m (typical)
BLE 5.2
- 2.400-2.4835 GHz
- AES-CCM 128-bit Encryption
- 5m (typical)
•
•
•
1. Consult your sales representative for local market clearance and availability.
2. Latency of less than 10 seconds with internet connectivity.
3. Cloud server processed from Biosensor biodata.
4. Posture reporting includes lying on the left or right side, supine, prone, upright, leaning forward or backwards (reclining).
5. Motion reporting includes sedentary, mild, moderate or vigorous.
